Alfa Laval PureSOx scrubber technology

PureSOx systems are configured to match not only your sailing profile, but also the physical constraints of your vessel, by applying:

  • Alfa Laval core technologies
  • A century of experience in the Marine industry
  • Over 50 years of experience with marine scrubbers
  • Experience from hundreds of scrubber installations

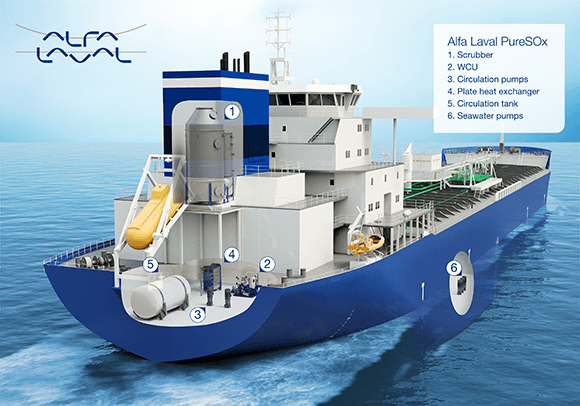

PureSOx tanker

Expert resources

With experience from over a decade of work with SOx scrubbers and exhaust gas cleaning, Alfa Laval has put together informative resources to help in your decision process.

Exhaust gas cleaning handbook

“Staying ahead in SOx compliance” takes a deep look at emissions compliance legislation and the reasons for choosing a SOx scrubber. In addition, it explores the choices on the market and the key considerations when selecting a scrubber supplier. With illustrations, diagrams and tables, it provides both a clear overview and important insights. To order a printed copy or download the PDF, fill out the form below.

This information is stored and processed in accordance to our privacy policy.

Information for shipyards

Alfa Laval provides complete documentation specific to shipyard needs. The shipyard documentation is divided into: - Advice for the specific vessel - PureSOx Design Guide for engineering, P&IDs and equipment drawings - PureSOx Installation Manual To obtain shipyard documentation or more information, please contact Alfa Laval.

Two men shipyard

PureSOx scrubber configuration

An Alfa Laval PureSOx scrubber system can be configured in three different operating arrangements: open-loop, closed-loop or a combination of these two, hybrid.

PureSOx hybrid

PureSOx Hybrid

A hybrid scrubber combines both open-loop and closed-loop modes. Open-loop mode reduces operating costs whenever possible, but you can easily switch to closed-loop mode if you need to comply with local water discharge regulations.

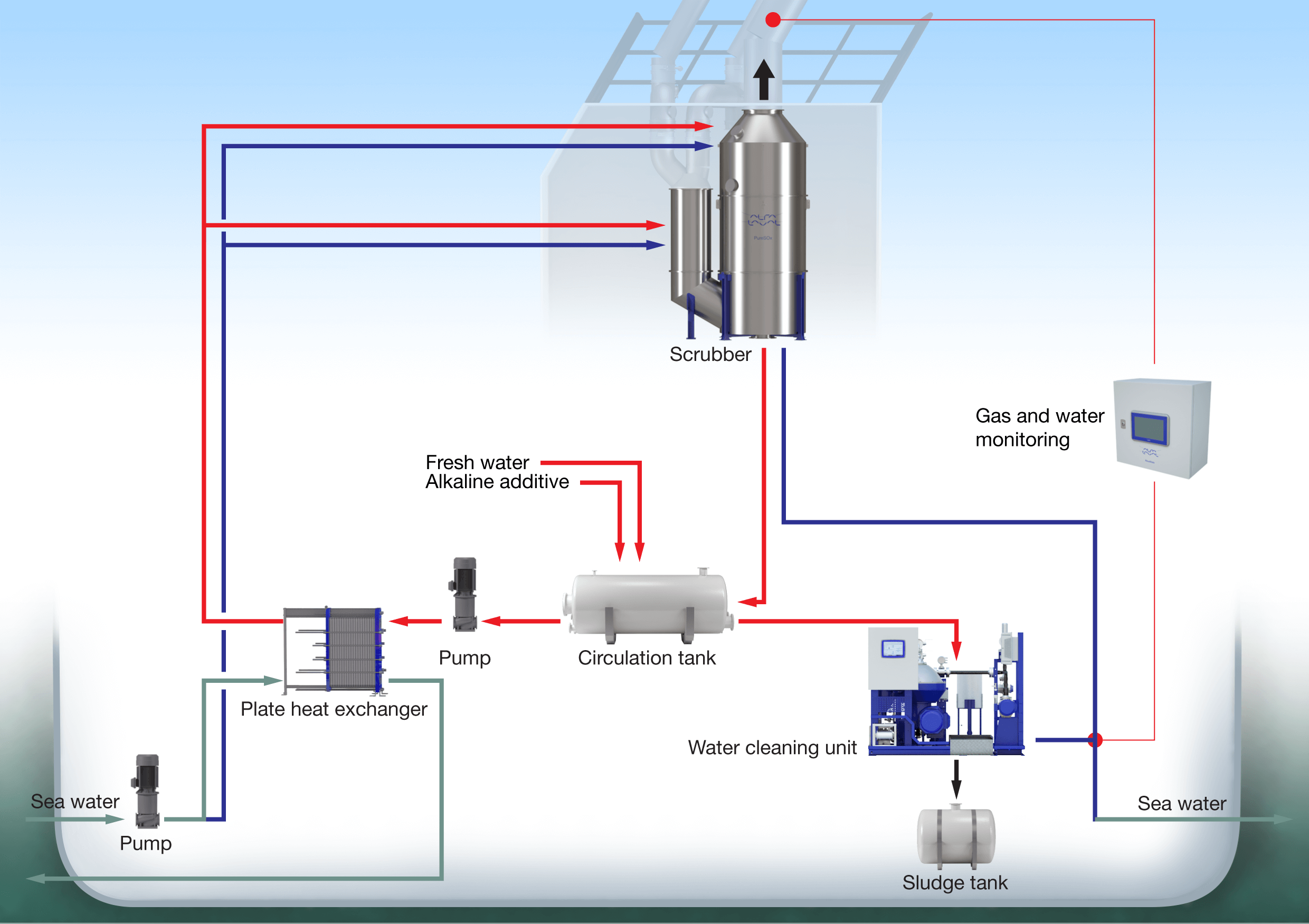

PureSOx closed-loop

PureSOx closed loop

A closed-loop scrubber can use either seawater, or fresh water with an alkaline additive. The water is recirculated and as it becomes dirty, the circulation water is cleaned, discharged, and replenished to retain scrubber capacity. The scrubber can be used anywhere and at any time, but its operating costs are higher than the open-loop configuration.

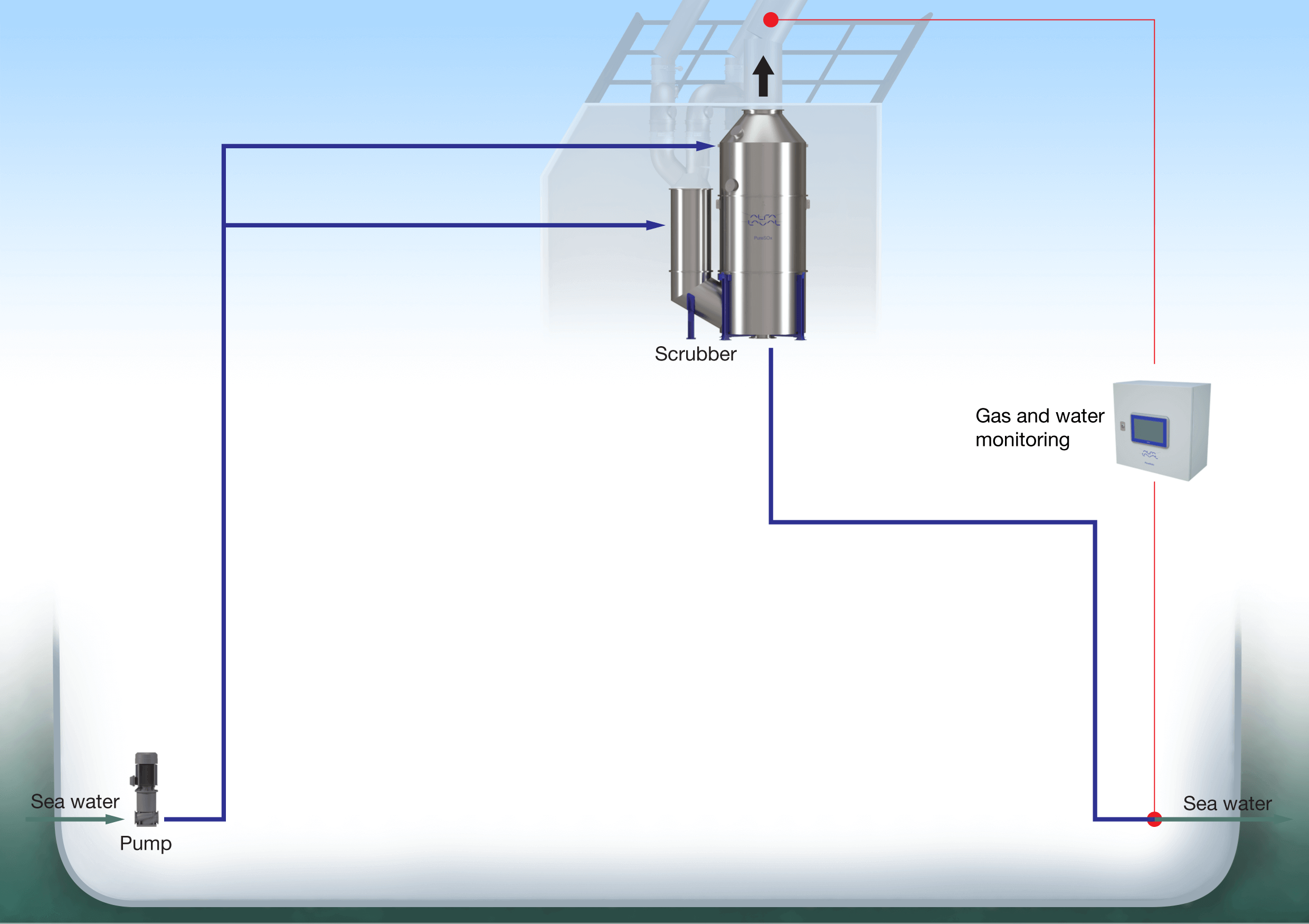

PureSOx open-loop

Open loop

In an open-loop scrubber, seawater is used to scrub the exhaust gas. Once the water has passed through PureSOx, it is discharged back into the sea, in compliance with IMO regulations. This configuration has the lowest investment and operating costs, but its use may be limited by low water alkalinity or local water discharge regulations.

Simplify compliance with PureSOx Connect

PureSOx Connect helps to simplify your scrubber’s compliance and service. It’s our platform of data-driven services that bring new ways to save time and money. The benefits of PureSOx Connect are:

  • Simplifying system operation and compliance reporting
  • Identifying service needs before they turn into issues
  • Accessing remote monitoring and root cause analysis, minimizing risk of unscheduled repairs and downtime
  • Optimizing system uptime and performance

Read more about PureSOx Connect in our leaflet

PureSOx Scrubber development

Alfa Laval is at the forefront of marine scrubber technology, thanks to hundreds of successful installations over the past decade. PureSOx is continuously being developed, both at the Alfa Laval Test & Training Centre and on board.

Core technologies

PureSOx applies Alfa Laval’s core technologies of fluid handling, heat transfer and separation. Centrifugal separators are especially important for a closed-loop or hybrid scrubber system, where it is needed to ensure compliant cleaning of the circulation water.

Alfa Laval Test & Training Centre

Much of the ongoing development of Alfa Laval PureSOx occurs at the Alfa Laval Test & Training Centre, a unique research facility located in Aalborg, Demark. The centre is a full-size machine room on land, with complete process lines integrated around a 2 MW marine diesel engine.

The PureSOx scrubber installed here can be pushed to its limits under controlled conditions, which accelerates both the speed and quality of testing. Learn more about our Test & Training Centre here
